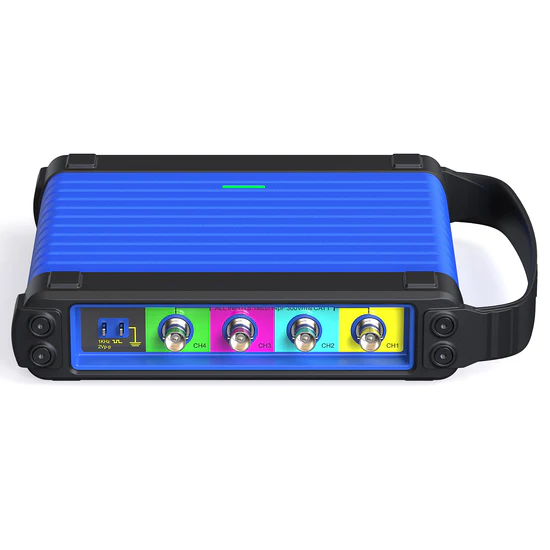

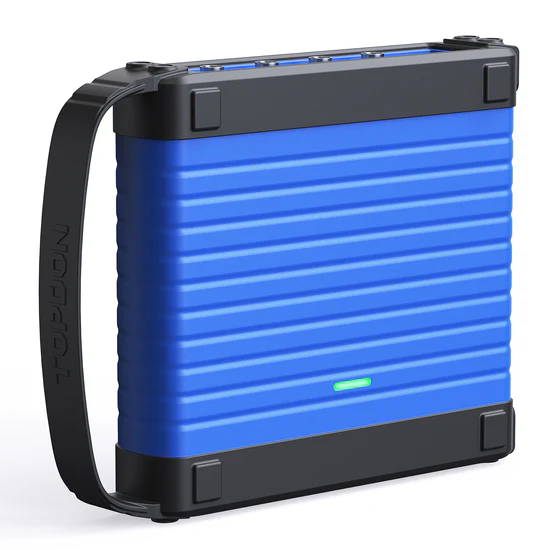

Phoenix Oscilloscope
550,00 €
Phoenix Scope allows technicians to quickly diagnose issues with automotive electronics and wiring.
Available on back-order
Products that are currently out of stock can still be ordered, with delivery expected within 7–10 days from the date of order. *Except in cases where the product is no longer available in our offer, in which case delivery is not possible.| Type | Range / Description |
| Number of Channels | 4 |
| Sample Mode | Normal |
| Bandwidth | 100 MHz |
| Protocol Decoding | CAN, LIN |
| Rise Time | ≤3.5 ns (typical) |
| Trigger Type | Edge, Pulse Width |
| Real-time Sampling Rate (Max) | 1 GSa/s (single channel); 500 MS/s (dual channel); 250 MS/s (four channels) |
| Trigger Mode | Normal, Auto, Single Sequence |
| Input Impedance | 1 MΩ ±1.5% |
| Trigger Coupling | DC, Noise Suppression |
| Memory Depth | 50 M (shared by 4 channels) |
| Sampling Settings | Auto, 10K, 100K, 1M, 10M |
| Trigger Level Range | ±10 divisions |
| Sample Bit | 8 |
| Display | YT, Zoom, Roll |
| Vertical Accuracy | ±3% |
| Roll Mode | 200 ms/div ~ 1000 s/div |
| Vertical Stall | 5 mV ~ 10 V |
| Math | Dual Waveform, FFT |
| Vertical Offset | ±2.5 V (probe X1, <500 mV/div); ±120 V (probe X1, ≥500 mV/div) |
| Automatic Setting | Supported |
| Invert | Supported |
| Automatic Measurement | 23 items |
| Channel Coupling | DC, AC |
| Cursor | Horizontal Cursor, Vertical Cursor, Phase Measurement |
| Time Base Stall | 50 ns ~ 1 ks (1 ns/div ~ 1 ks/div, step 125) |
| Power Supply | USB Port, DC Port |
| Time Base Accuracy | 20 ppm (typical value, ambient temperature +25°C) |
| Data Transfer Method | USB |
