Phoenix SMART
2.150,00 €
The Phoenix Smart® is part of TOPDON’s new generation of intelligent diagnostic tools. Equipped with quad-core processors and a 10.1 inch HD touch screen, this tool allows you to diagnose fault codes with one click.
Phoenix Smart® is part of the new generation of intelligent diagnostic tools from TOPDON. Equipped with a quad-core processor and a 10.1-inch HD touchscreen, this tool allows for error code diagnostics with a single click. Its 12,600 mAh battery can last an entire day without the fear of losing power. Phoenix Smart also supports cloud-based programming for over 13 car brands and includes 2 years of free software updates. Combined with the MDCI Pro device, this scanner provides unmatched coverage, intelligent diagnostics, and a wide range of maintenance functions.
ADAS COMPATIBILITY
Offer the requested services to your customers with Phoenix Smart. Pair the Phoenix Smart with TOPDON’s Phoenix Mobile ADAS package for calibrating complex driver assistance system functions.
As ADAS software becomes more common in modern vehicles, the need for its recalibration grows. Meet this rising demand with confidence.
Video Clips for Phoenix Smart
Application
TOPDON Phoenix Smart comes with the Phoenix MDCI Pro device, a VCI module that supports J2534 protocols. The driver for the interface and J2534 DLL (in accordance with the SAE J2534 standard – dynamic link library file) are integrated into the J2534 Plus installation file. After completing the download, unpack the driver installation package. The compressed file contains the driver installation files and user manuals.
J2534 Plus V1.9 Requires Windows 10 or newer
Documentation

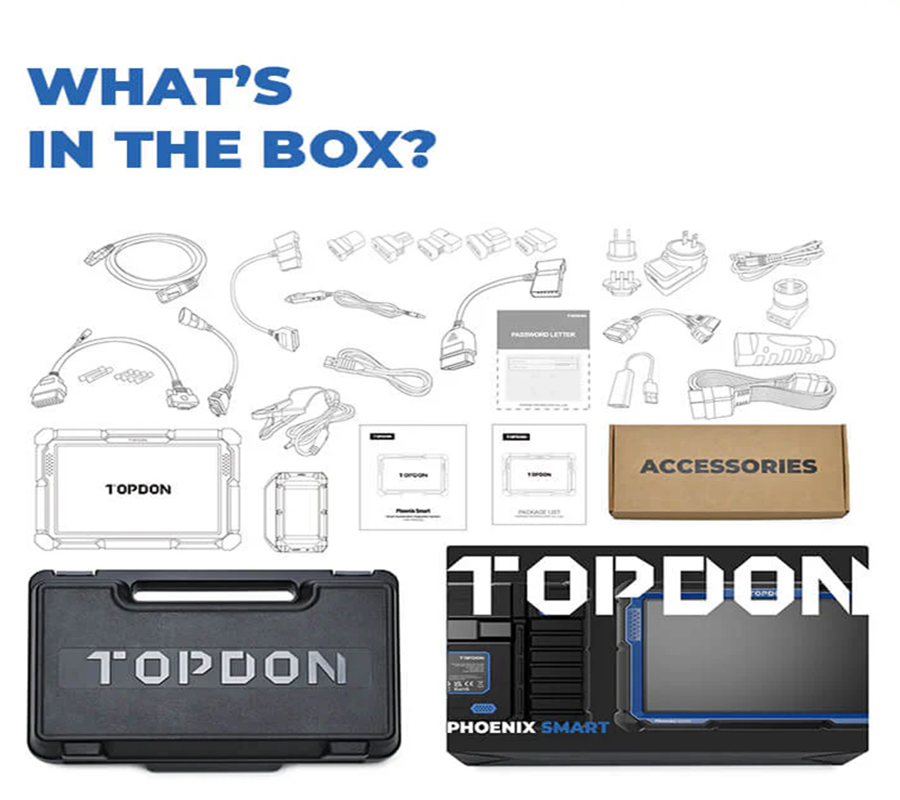

Packing List
- 1* Phoenix Smart
- 1* Phoenix MDCI Pro(VCI Dongle)
- 1* OBDI Adapter BOX Transfer Line
- 1* OBDII Extension Cable
- 1* Cigarette Lighter Cable
- 1* Type-C to USB Cable
- 1* Battery Clamps/Cable Set
- 1* User Manual
- 1* Password Envelope
- 10* Non-16pin Adaptor Cable Kit (NN-14+16, BZ-38, TA-17, TA-22, G/V-12, B-20, CR-6, HA-3, M/H-12+16, FT-3)
- 4* Fuse (φ5*20mm)
- 2* Fuse (φ6*30mm)
- 1* Type A to B Cable
Warranty and Software Updates
2-Year Warranty
The device purchased through our online store is covered by a two-year manufacturer's warranty.
Two Years of Free Software Updates
With every purchased device, you are entitled to two years of free software updates.
Phoenix SMART Specification
| Display | LCD 10.1 inches touchscreen, 1280*800 |
| CPU | 4-Core Processor, 2.0 GHz, Android 10.0 |
| RAM | 4G |
| ROM | 128G |
| Battery | 12600 mAh / 3.8V |
| Operating Voltage | 9~18V |
| Storage Temperature | -20℃ to 60℃ (-4℉ to 140℉) |
| Working Temperature | 0℃ to 50℃ (32℉ to 122℉) |
| Dimensions | 278 x 191 x 48mm (10.94 x 7.52 x 1.89 inches) |
| Packaging Dimensions | 468 x 320 x 143mm (18.43 x 12.60 x 5.63 inches) |
| Multilingual Support | 24 languages: English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian |
