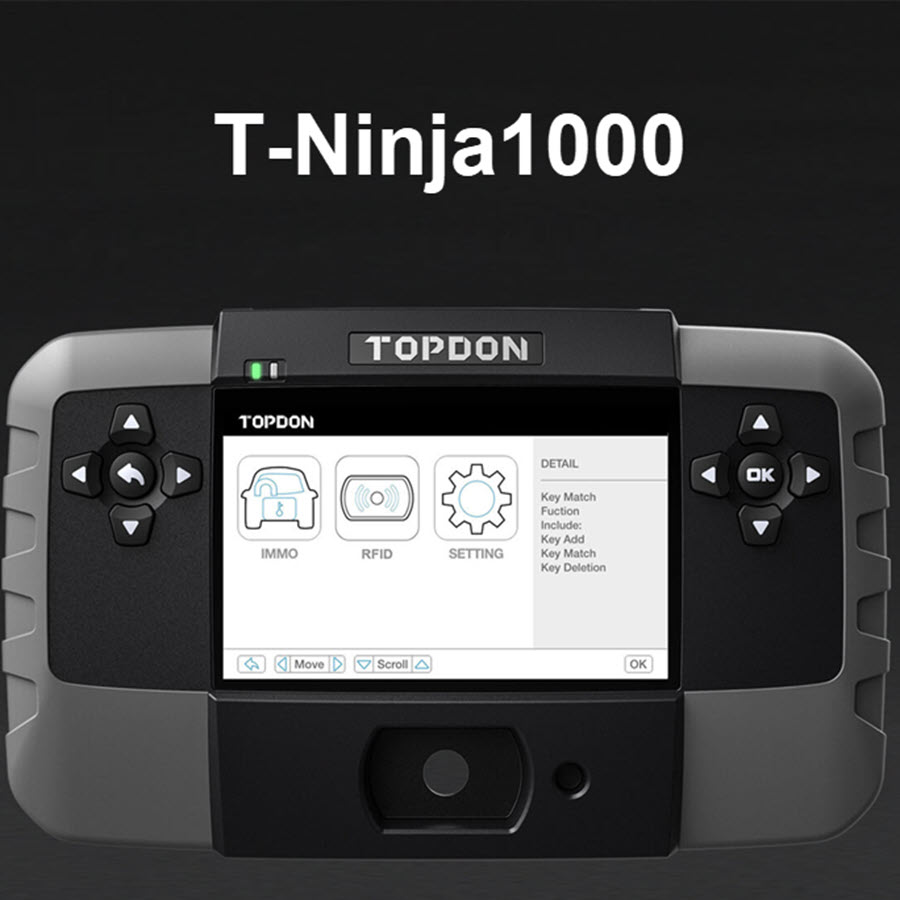

T-Ninja1000

T-Ninja1000

Database With Over 5,000 Vehicle Model Details
The 5,000+ vehicle database with locksmith verified details and processes speeds up the learning curve for new users, and boosts business for locksmiths.

User-Friendly Design

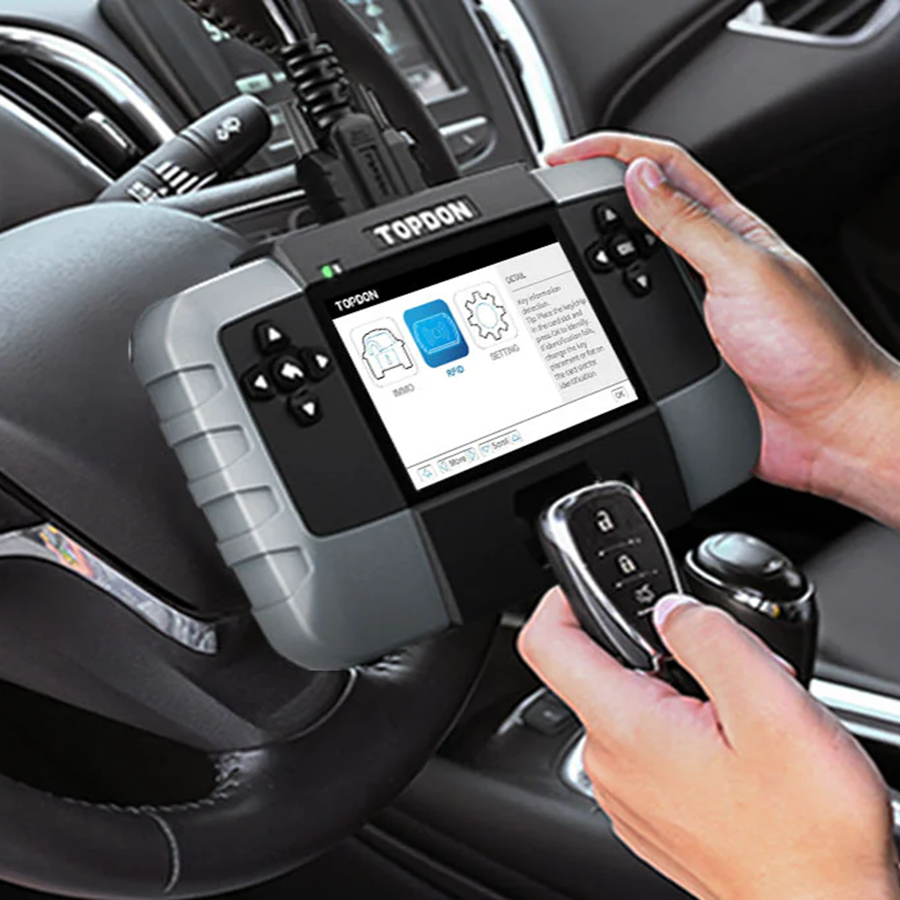

Comes with an integrated RFID induction slot and easy-to-store carrying box.
All through OBD, no soldering or EEPROM needed.

Turns Beginners Into Pros
The Step-By-Step operating tips will guide beginners all the way through the key programming procedures, speeding up production.

Always Be Up-To-Date
Offers regular updates so technicians can work on the latest vehicles as they come out.

Wide Vehicle Coverage
Use the T-Ninja1000 to cover all major manufacturers in the US, Europe and Japan. Unlimited uses, no tokens required.
Video - T-Ninja1000
Aplikacija

Developed for T-Ninja1000.
Download the latest software to expand more functions and get the better user experience.
Documentation
T-Ninja1000 Specification
Operating System | Rt-thread |
CPU | ARM Cortex-M4, 180MHz |
Display | 5.0” TFT LCD, 800×480 Resolution |
Memory | 256M RAM, 128M ROM, 16G Micro SD |
Material | ABS Plastic Shell, Silicone Button |
Starting Time | ≤3 Seconds |
Connectivity | USB 1.1 |
OBD Interface | OBD-II 16PIN |
Buzzer | 85 dB/min at 10 cm |
Current | 500mA (typical) |
Input Voltage | DC 12V |
Power Consumption | 1.8W (typical) |
Battery | 350mAh Button Battery (not rechargeable) |
Working Humidity | ≤95% RH |
Working Voltage | 12V ± 25% |
Working Temperature | -10℃ to 45℃ (14℉ to 113℉) |
Storage Temperature | -20℃ to 50℃ (-4℉ to 122℉) |
Dimensions | 231.5×141.5×35 mm (9.11×5.57×1.38 inches) |
Weight | 480g (16.93 oz) |
Storage Space | To store keys, chips, parts, and necessary tools |
Pre-reserved Space | To store the device without detaching the main cable |
